Toshiba PCX1100 Cable Modem


PCX V6.1 RevX2 Made in taiwan. This is the old model without an USB connection.

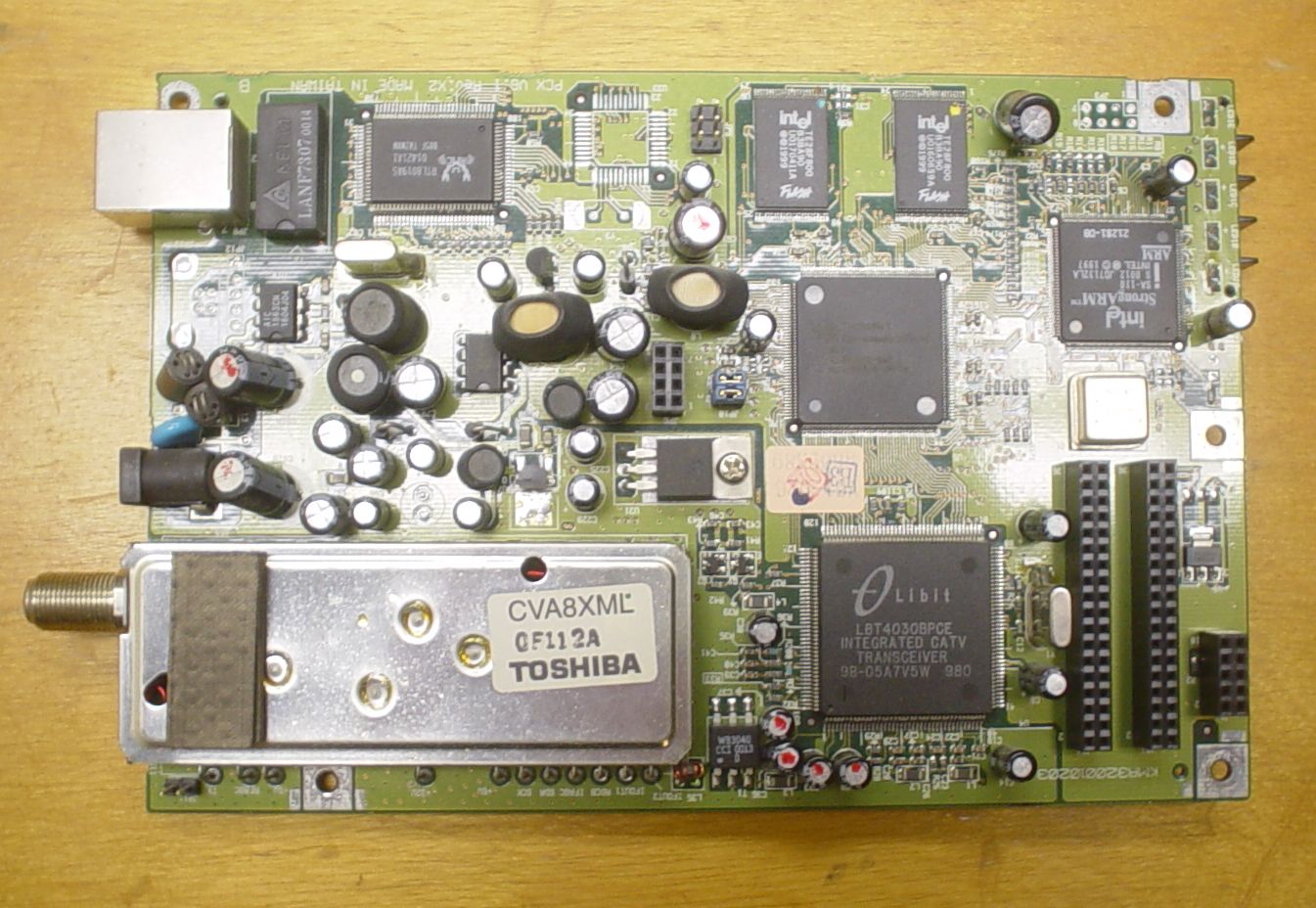

The processor (top left) is an Intel StrongARM SA-110.

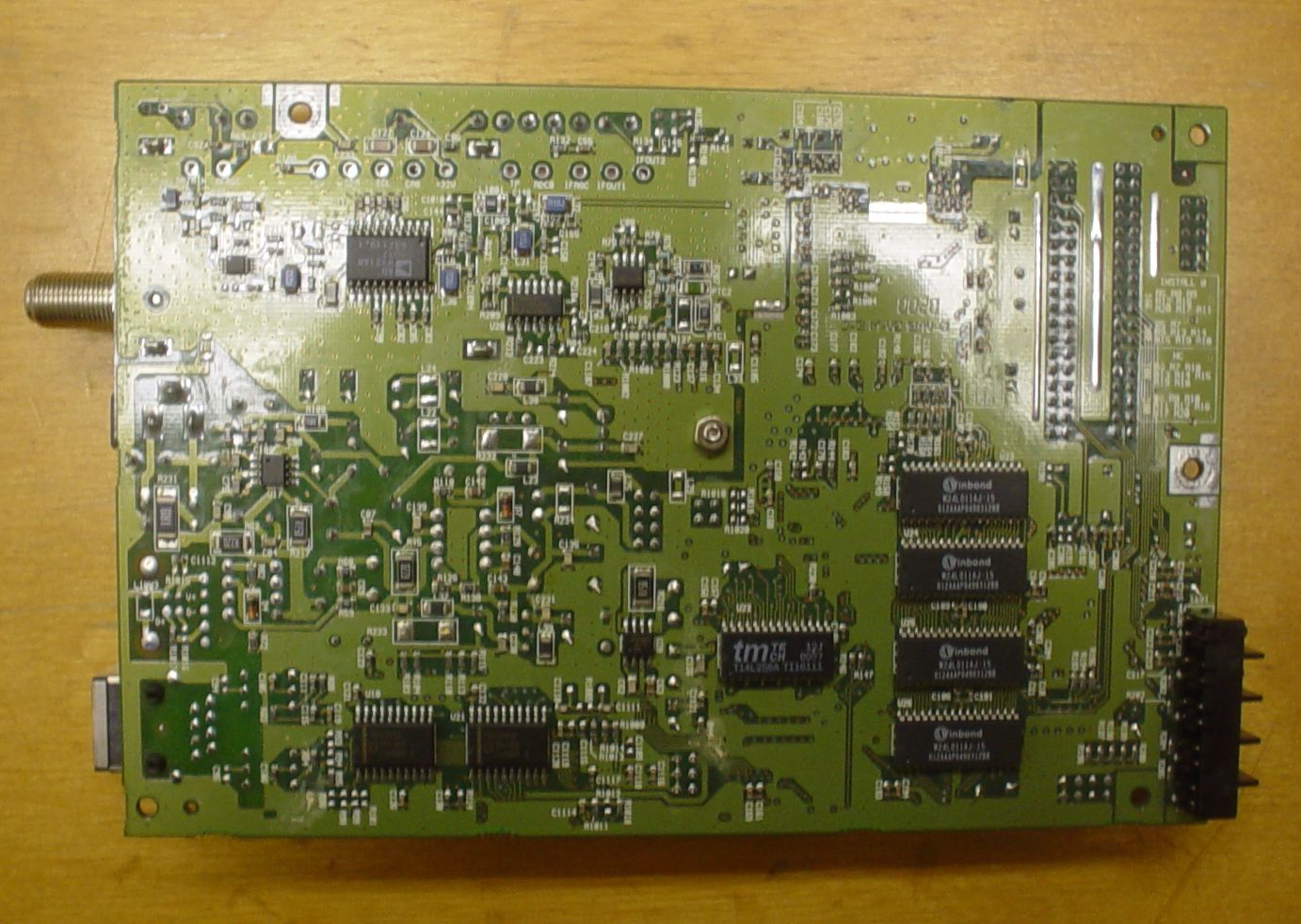

The 4 W24L011AJ ic's to the right is the SRAM - each one is 1MB. Just left of  them is a single T14L256A that provides an additional 256K. The 4 MB are probably used by the processor while the 256K is used by the "TurboNet" chip.
